Aluminum Extrusion Equipment

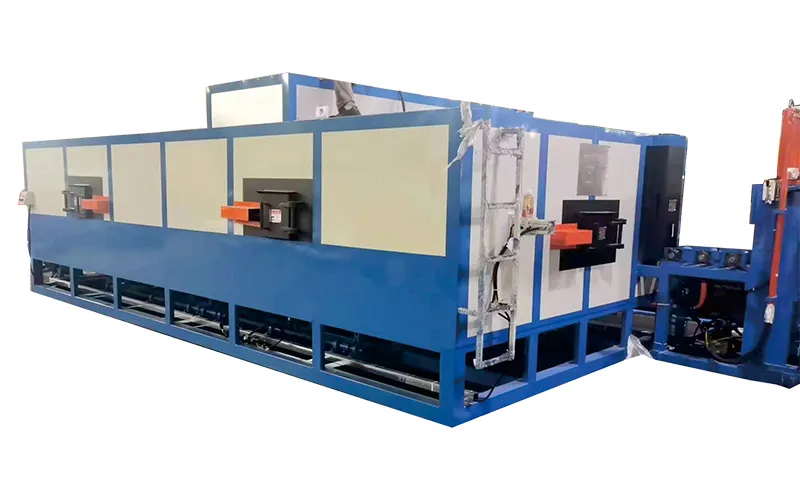

Multi-Billet Furnace (Aluminum Billet Heating Furnace)
Log heat furnace for heating aluminum billets to the desired temperature for extrusion
The fully automated, energy-efficient multi-billet heating furnace is designed to provide uniform heating for aluminum billets. It comprises an aluminum billet feeding system, furnace body, hot shearing machine, combustion system, and PLC control system.
Specifications (customizable)
| Aluminum Billet Length | ≤7000mm |
| Aluminum Billet Diameter | Ø80- Ø350mm |
| Heating Temperature | ≤580℃ |
| Heating Method | natural gas/LPG/electricity |
Features
- The entire system is managed through advanced PLC automation.
- All operations are completed automatically with a single button press.
- The system includes self-diagnosis functionality for easy maintenance and troubleshooting.
- Ensures efficient material utilization through precise hot shearing.
- Guarantees uniform heating of aluminum billets for consistent quality.
- Scientifically designed to minimize heat loss and optimize energy consumption.
Options of Cooling Table
| Tonnage | Inch | Diameter | Number of Billet | Total Power |
| 3.5" | Ø90mm | Outlet 12pcs+2pcs | 10.5kW | |
| 4" | Ø102mm | Outlet 10pcs+2pcs | 10.5kW | |
| 5" | Ø120/Ø127mm | Outlet 9pcs+2pcs Outlet 8pcs+2pcs | 12.5kW | |
| 5.5" | Ø135mm | Outlet 8pcs+2pcs | 12.5kW | |
| 6" | Ø152mm | Split type outlet | 15kW | |
| 6.5" | Ø165mm | Split type outlet | 16.5kW | |
| 7" | Ø178mm | Split type outlet | 18kW | |
| 8" | Ø203mm | Split type outlet | 20.5kW | |
| 9" | Ø228mm | Split type outlet | 20.5kW | |
| 10" | Ø254mm | Split type outlet | 25kW |
