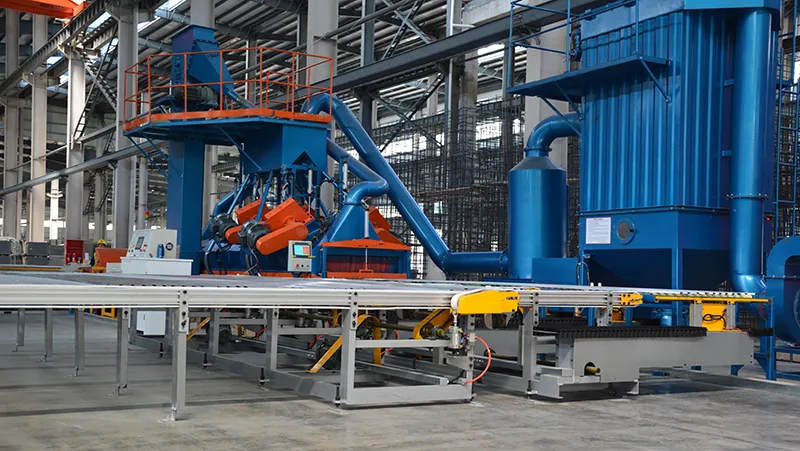

Air Cooling Quenching System

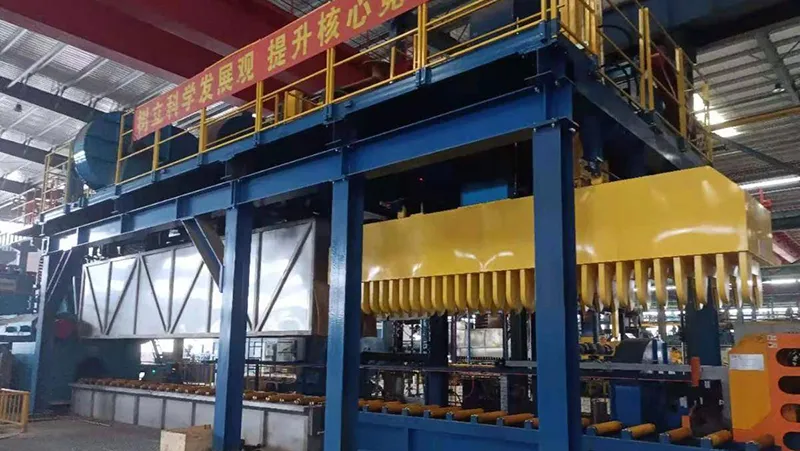

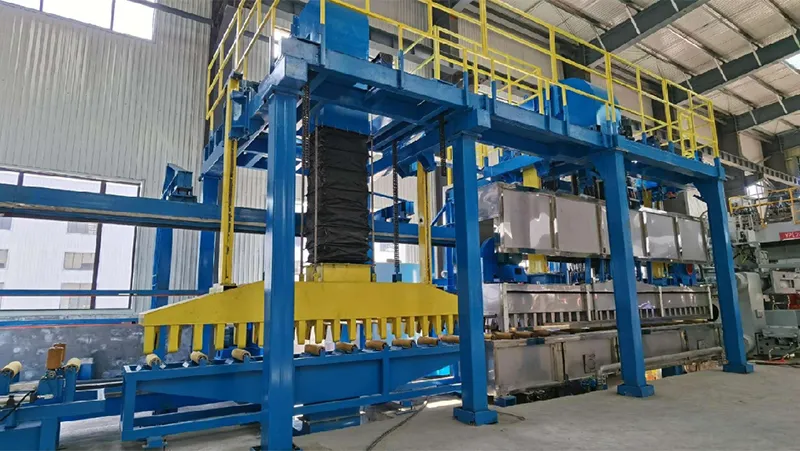

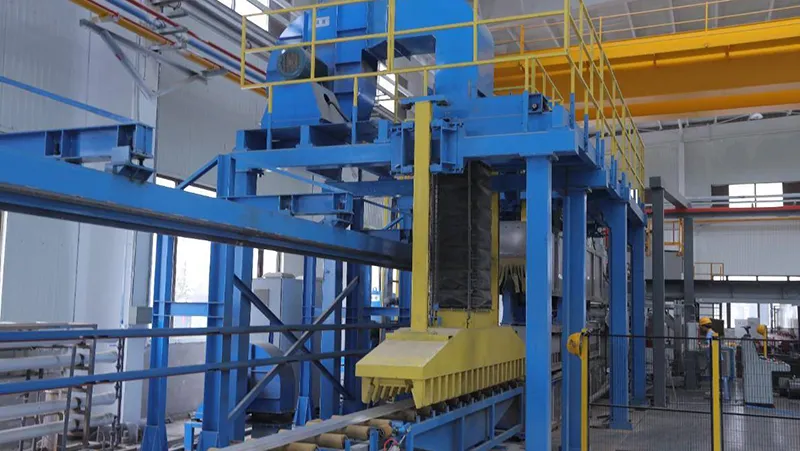

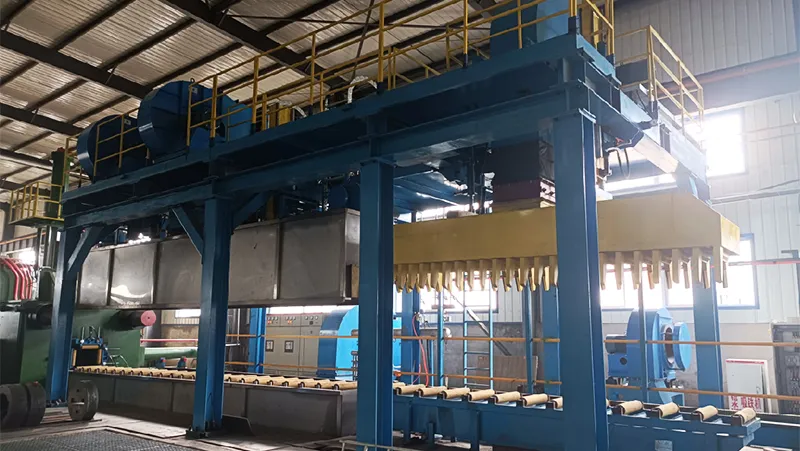

The air cooling quenching system is based on a 7-meter-long unit with motor-driven elevation and consists of an upper cooling hood and a lower cooling hood.

The upper hood has the following characteristics

Total fan motor power: 45 kW
Air volume: 45,000 m³/h

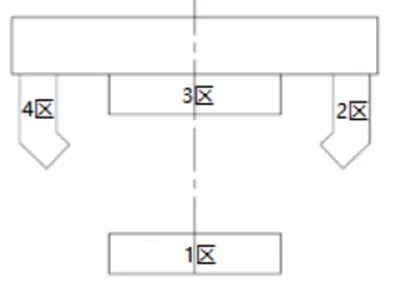

Divided into three zones:
Top zone: 30 air nozzles, spacing 200mm, size 300mm x 13mm
Left side zone: 30 air nozzles, spacing 200mm, size 150mm x 13mm
Right side zone: 30 air nozzles, spacing 200mm, size 150mm x 13mm

The lower hood has the following characteristics

Fan motor power: 22 kW
Air volume: 22,000 m³/h
Divided into one zone:
Bottom zone: 30 air nozzles, spacing 200mm, size 300mm x 13mm

Additional Features

Cooling is powered by two independent fans, each controlled by variable frequency drives.
During non-extrusion cycles, the air cooling system can be shut off using switch valves, conserving energy and extending motor life.

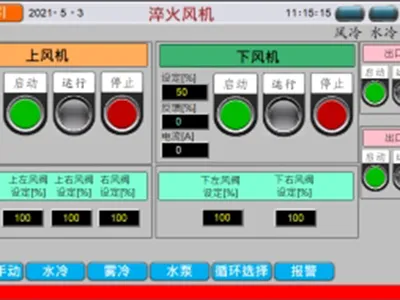

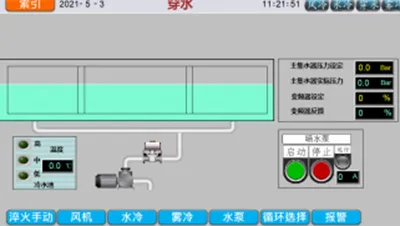

Both air volume and upper hood height can be adjusted directly via the touchscreen. Cooling configuration settings can be customized for different profiles and stored in the PLC for repeatable use.

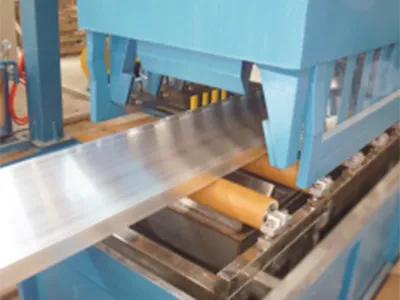

Kevlar rollers in the lower hood are heat-resistant up to 600°C, spaced approximately 400mm apart, and supported by aluminum housings with specialized bearings, allowing operation in humid environments.
The support system allows height adjustment for precise alignment and quick roller disassembly.
Roller structure height can be adjusted using a geared motor to align with the extrusion press’s center height. The first roller’s position can be set about 50mm lower than the extrusion press’s centerline.

Water Cooling Quenching System

The water cooling quenching system consists of a 5-meter-long independent unit fixed onto a 6-meter structure that is integrated with air-cooling equipment. This unit features several rows of nozzles for effective cooling:

Upper section: Two rows of nozzles, each with 25 nozzles spaced 200mm apart
Side sections: One row of nozzles on each side (left and right), each with 25 nozzles spaced 200mm apart
Lower section: Two rows of nozzles, each with 25 nozzles spaced 400mm apart

Additional Features

Equipped with a drainage system to prevent freezing and pipe damage during winter.
Air knives at both the inlet and outlet of the cooling system use compressed air to blow away residual water, ensuring the profiles are fully dried.

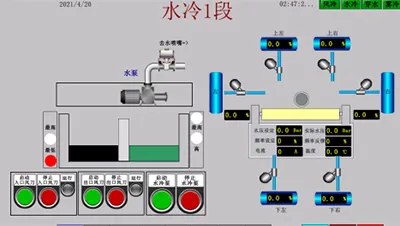

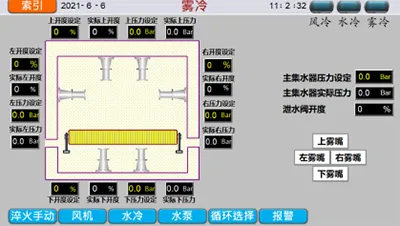

Each section is controlled by proportional valves, allowing water flow adjustment from 30% to 100% of the maximum flow. These valves are managed by the PLC system, enabling different cooling profiles to be tailored for specific profiles. Cooling profile data is stored in the PLC for repeatable use.
All components in contact with water are made of 304 stainless steel, ensuring durability and corrosion resistance.

Water Mist Cooling Quenching System

Utilizes air-cooling fans to direct atomized water mist onto the surface of aluminum profiles
Once the air vents are open, the atomized water mist combines with the airflow to create intense turbulence, ensuring effective and uniform cooling on the surface of the aluminum profiles.

Water Flood Cooling Quenching System

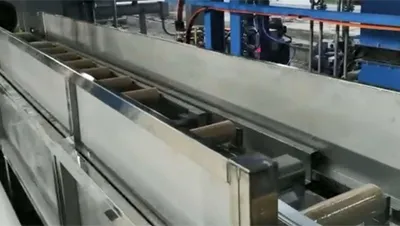

The water flood cooling quenching system features horizontally mounted nozzles with one nozzle at the entry and one at the exit of the cooling channel.
It is designed to ensure uniform water distribution and effective cooling for the aluminum profiles during the extrusion process.
When the quenching system is in use, the water pump supplies water simultaneously to the two flood nozzles, creating a water trough.
To use the water trough effectively, both ends of the trough are sealed with wooden boards and fabric pieces to prevent water leakage. The wooden boards and fabric pieces must be prepared by the client.

Cooling Water Circuit

All water circulation and piping (including the water reservoir) are designed to be placed below the floor near the quenching cooling system. The cooling water circuit is implemented based on the following principles:

Cooling water reservoir
The client is responsible for constructing the cooling water reservoir according to the seller's design. The reservoir is made of reinforced concrete and installed underground, divided into two separate sections of a cold water reservoir and a hot water reservoir. The total capacity is approximately 25 cubic meters.
Water flow process
Water flows from the quench into the hot water reservoir due to gravity. A pump transfers water from the cold water reservoir to the nozzles. The pump includes a built-in bypass valve to prevent water hammer during the start/stop of the cycle. Water transfer is controlled through proportional control valves, which receive feedback signals from pressure sensors.
External cooling water source and piping
The client is responsible for providing the external cooling water source and related piping. This includes components such as plate heat exchangers, water pumps, and valves. The seller will provide technical specifications for these components, and the buyer will procure them accordingly.

This setup ensures efficient cooling water management while allowing for client-provided external components based on the technical guidance.

Quenching Method	Air cooling Water cooling Water mist cooling Transverse water cooling
Cooling Section	Total length	6500mm
	Lead-out table	500mm
	Air cooling length	6000mm
	Air speed	≥50m/s
	Water spray/mist cooling length	5000 mm
	Transverse water cooling	4000 mm
Roller	Easily interchangeable (cover material:KAVLAR+PBO)
Roller Size	Width	500mm
	Pitch	400mm
	Diameter	96mm
