Aluminum Extrusion Equipment

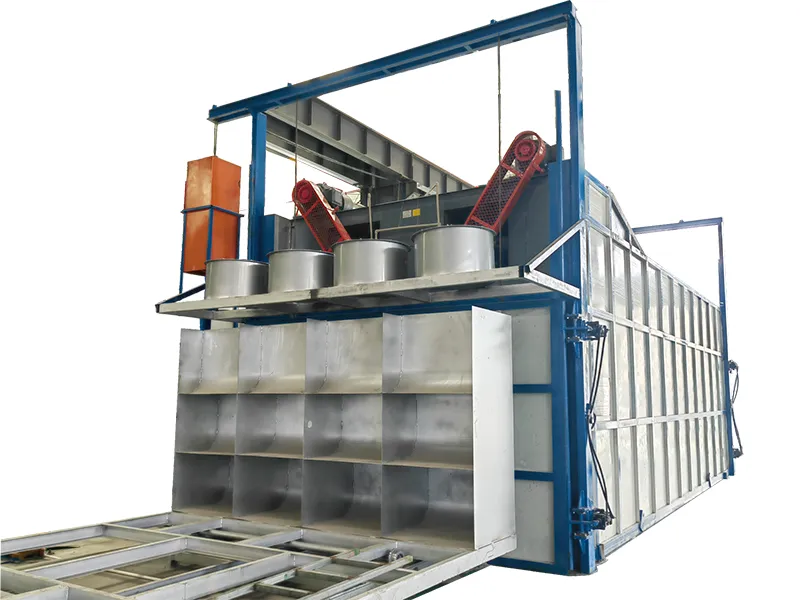

Age Oven (Annealing Oven)
Ageing furnace for improving the hardness and wear resistance of extruded aluminum profiles
The age oven uses a hot air circulation system to ensure uniform heat distribution within the chamber, improving the consistency of aluminum profile aging treatment. Fans mounted on the top or sides of the furnace circulate heat generated by heating elements, ensuring every part of the aluminum profile is evenly heated. Some ovens are equipped with special air guide structures or baffles to optimize airflow and enhance temperature uniformity. With adjustable feeding systems, racks, and replaceable components, the annealing oven is versatile for treating aluminum profiles of various shapes and specifications, while parameters like heating temperature and holding time can be flexibly adjusted to meet different processing requirements.
Specifications
| Voltage | 380V/400V |
| Rated Power | 15-100kW |
| Working Temperature | 200 to 500℃ |
| Temperature Control Accuracy | ±1 to ±3℃ |
| Fan Power | 3-15kW |
| Conveying Speed | 1-5m/min |
| Machine Dimensions | Small ageing oven:length 2-3m,width 1.5-2m,height 1.5-2m Large ageing oven:length 5-10m,width 3-5m,height 2-3m |
| Machine Weight | 2-10t |
Features
- Equipped with PID self-tuning temperature controllers for precise temperature regulation, with control accuracy typically within ±1°C to ±3°C.
- Supports multi-range input, arbitrary temperature settings, and various alert functions, including thermocouple correction, power control, and over-temperature alerts, ensuring strict adherence to process requirements.
- Often uses a trolley furnace base or feeding carts for easy profile loading and unloading.
- Furnace doors can be configured in various styles, such as lift-type or sliding, with appropriate traction or transmission mechanisms for smooth operation.
- Includes over-temperature alarms that trigger warnings and shut off the heating power if the internal temperature exceeds the safety threshold, preventing equipment damage or accidents.
- Some models feature interlock systems that automatically cut off the main heating circuit when the furnace lid is opened, ensuring operator safety by preventing accidental mishandling.
