Aluminum Extrusion Equipment

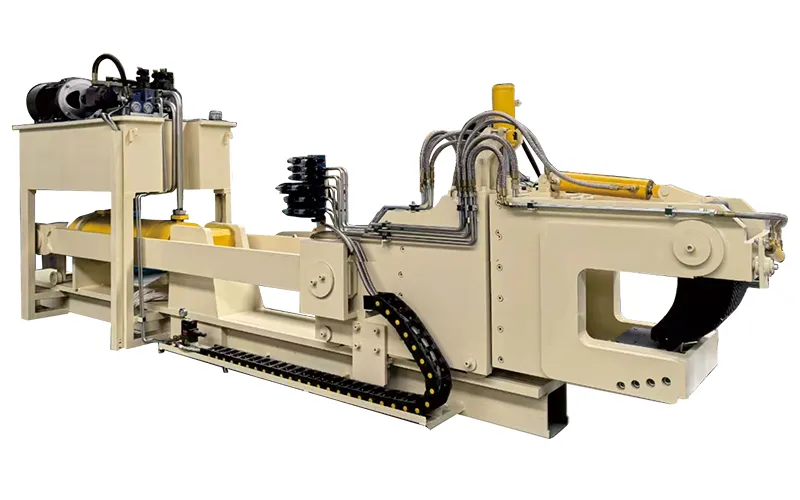

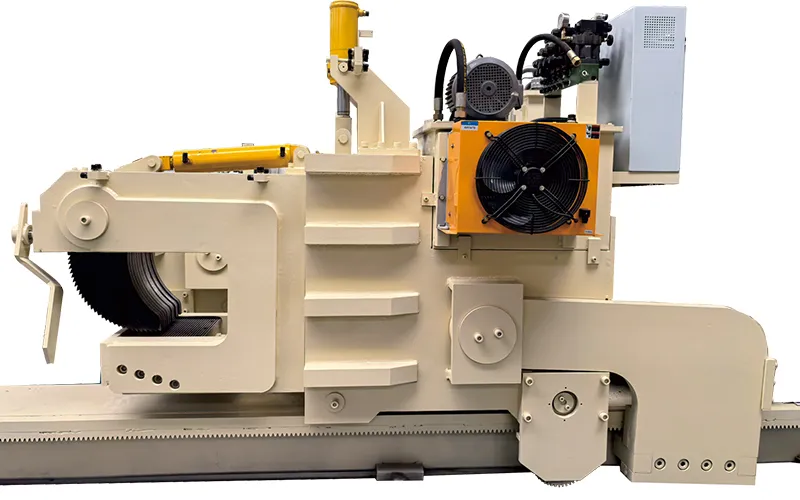

Automatic Aluminum Extrusion Stretcher
Stretching machine for elongating and straightening aluminum extrusions with optimal straightness

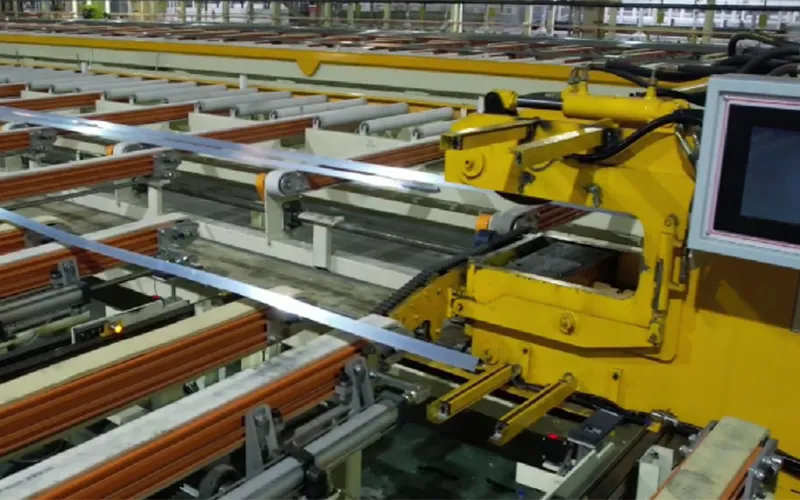

The aluminum extrusion stretcher straightens bent aluminum profiles to high precision, ensuring the final straightness meets strict quality standards, typically within 1-3mm per meter. With features like automatic feeding, straightening, and fixed-length cutting, it minimizes manual intervention, boosts production efficiency, reduces labor intensity, and eliminates human error for efficient and stable aluminum profile production.
Specifications
| Applicable Cross Section | Rectangular,round,irregular shaped |
| Stretching Range | Rectangular profile:width 20-200mm,thickness 1-10mm Round profile:diameter 10-100mm |
| Stretching Speed | 5-30m/min |
| Stretching Stroke | 600-1500mm |
| Stretching Accuracy | 1-3mm |
| Cutting Length | 0.5-6m (error ±1 to ±3mm) |
| Motor Power | 3-15kW |
| Machine Dimensions | Length:2-5m Width:1-2m Height:1.5-2.5m |
| Machine Weight | 1-5t |
Features
- Equipped with a servo module control system that uses photoelectric sensors to detect the position of different sections of the material, lift it, measure its initial length, and pre-align it for straightening.
- Optical sensors ensure precise material positioning, two sets of light curtains on the chuck ensure the billet is securely clamped for straightening.
- The straightening system features configuration data storage, allowing automatic adjustments based on mold specifications and process requirements.
- Automatically counts the number of extrusions; when a preset quantity is reached, the material moves to the saw for cutting.
- Includes multiple safety devices such as overload protection, limit protection, and emergency stop buttons to ensure equipment and operator safety during abnormal situations.
- Integrates with other production equipment such as aluminum cutting machines and drilling machines, forming an automated production line for improved efficiency.
